| BE
- 8 TESTER for LOW-CAPACITY ELECTROCHEMICAL SOURCES |
| Technical
parameters: |
| 3 different
modes for every channel |
|
U=f(I) |
|
U=f(I) Uref |
|
I =f(U) |
| Current
modes |
| charge |
0-30 mA step 15 uA |
| discharge |
0-30 mA step 15 uA |
| U reference |
0-6 V step 3 mV |
| multiplier |
1-20 |
| Software
for control, visualization and data processing |
|
|

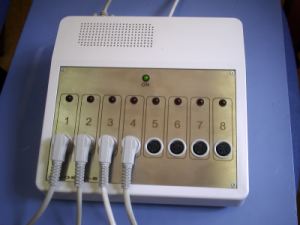

BE-8 supports up to eight independent channels
for battery and accumulator tests with capacity
up to 100 mA/h.
|

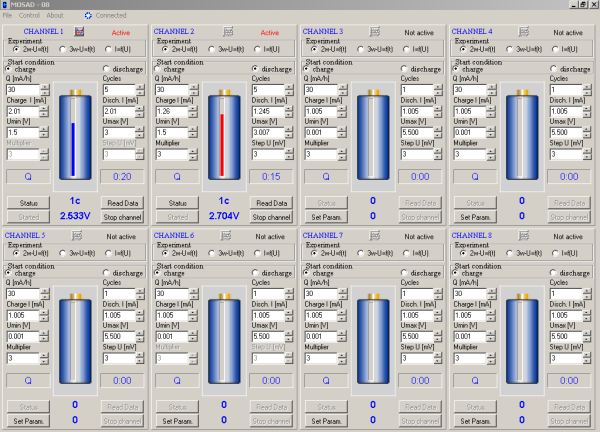

BE-8 control panel
|

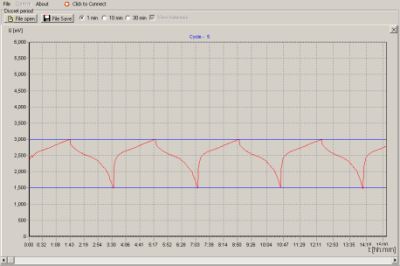

View
long time records (up to 30 days) charge-discharge
cycles with different currents value and reference
voltage set in the tester by the BE-8 software.
|
|
Ich/dch=f(U)
|
| ECCENTRICITY CONTROL OF OPTICAL AND
MECHANICAL AXIS OF LENS ASSEMBLIES (ECA) |

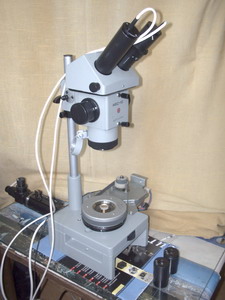

ECA is an optic measurement device for control and adjustment
of the optical and mechanical axis for two or more
lenses in the assemblies. The software for analyses
shows current and admissible axis eccentricity of
the optical unit. Shows where and how much have to
be moved lens toward the other to adjust controlled
parameters of the optical unit.
Advantages:
Technologic card support
Build-in optic calculator
Precision 7 microns by X and Y
Full automatic measurement
Shows the exact spot place to correct the lens
assemblies eccentricity
Software with build-in optic calculator for
technologic card creation
|
|
|
 |
|
 |

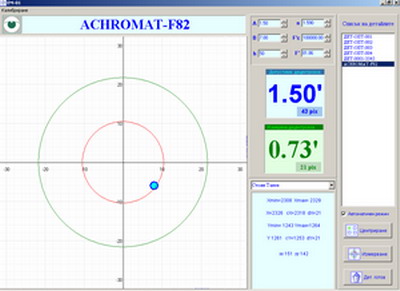

Measurement program |
|

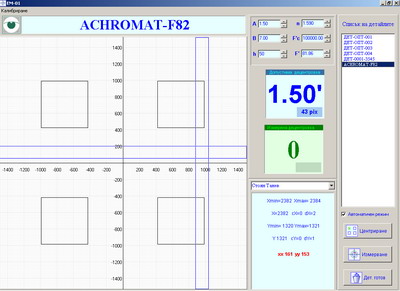

Control and adjustment |
| CONTROL
THE EVAPORATION PROCESS OF THIN OPTICAL FILMS |
| |
|
|

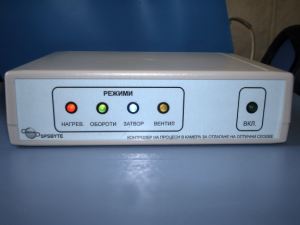

This is a special
device intended to remote control of XTC
and XTC2 Inficon controllers. The device
and support program give full information
at the PC monitor about the current processes
during evaporation . Control and archiving
of all stages of the technological process |
|
Advantages:
- Software for technologic
card creation
- Technologic card
supports
- sequence of
the coating materials
- thick of the
layer for every material
- speed of evaporation
- temperature
during the process
- Controlled parameters:
- temperature
of the chamber
- speed of evaporation
- ionization current
value in the chamber
- speed of rotation
of the details platform
- vacuum value
in the chamber
- Alarms
- Creates process
file archive
|

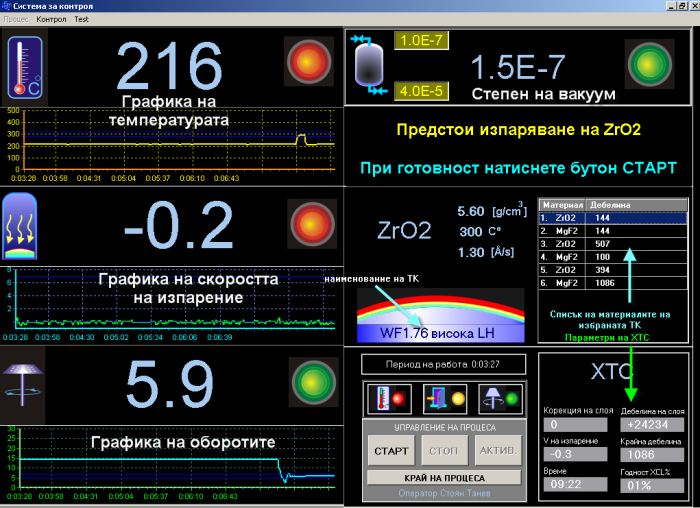

Main control monitor
|

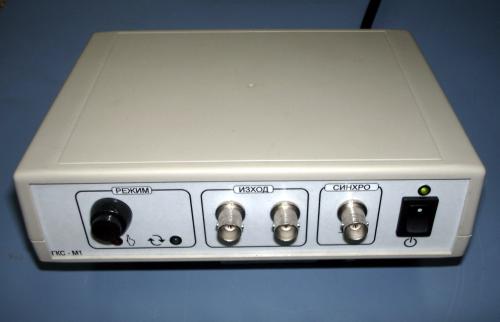

| GENERATOR
OF SPECIAL SIGNALS (GSS) |
|
 |
|
| Sample rate |
8 kHz / 12 bit |
| Synchro signal
input |
Ext. / Int. |
| Synchro signal
output |
5 V |
| Mode |
Auto/manual |
| Output |
POS/NEG |
| Offset |
-5V to +5V |
| Amplitude |
0-5 V |
Advantages:
Generator of special
signals is intended to research of preliminary
recorded intricate signals from quick processes. |
| |

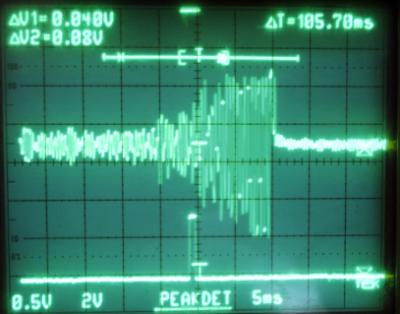

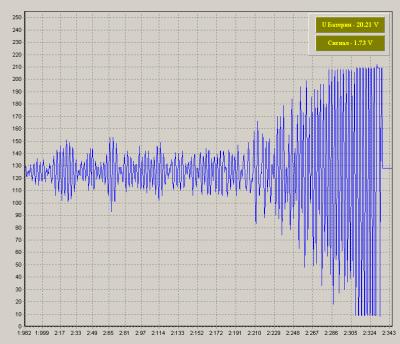

 recorded signal
|
|
 generated signal
|
|
